Main wiring (ceiling module)

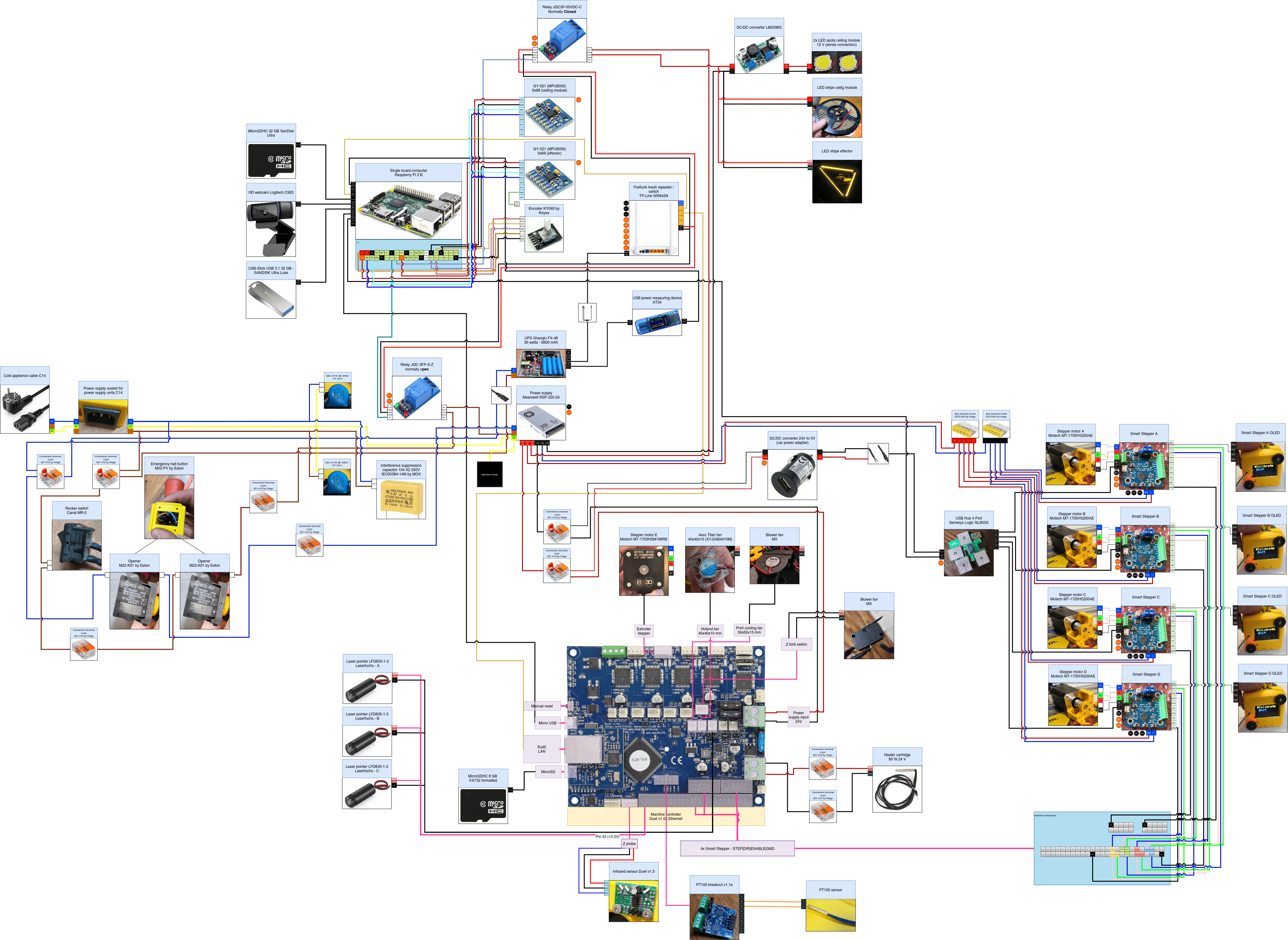

Note: The Smart Steppers are wired with 5V IN at the module side,  but not at Duet. The power for the modules come from USB hub. For this reason the 5V wires are not shown in the following diagram:
