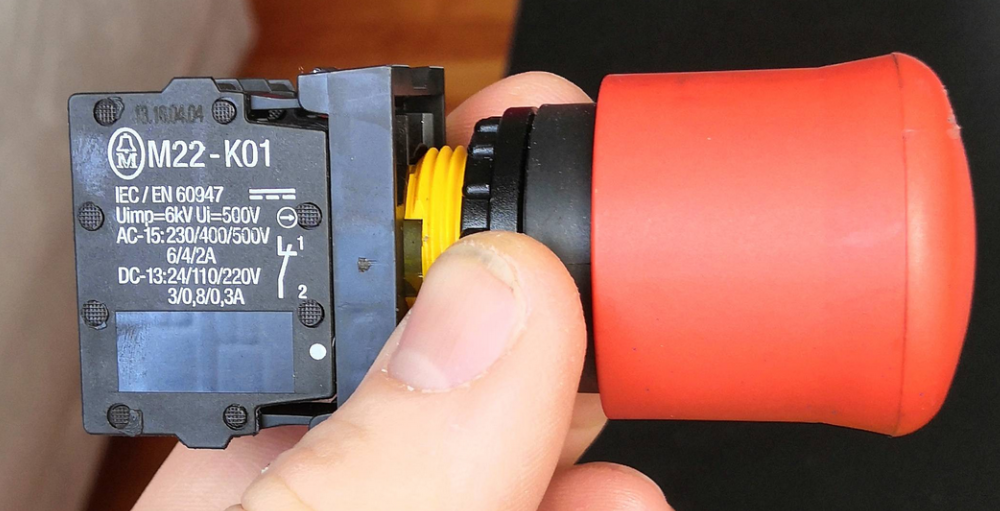

Generic used parts and base frame parts | Emergency push button and opener M22-K01 by Eaton

• Cross sections: 1 x (0.75 - 2.5) 2 x (0.75 - 2.5) mm²
• Rated insulation voltage [Ui]: 500 V Rated impulse withstand voltage [Uimp]: 6000 V AC
• Operating torque (screw terminals): ≦ 0.8 Nm
• Climate resistance: moist heat, constant, according to IEC 60068-2-78 moist heat, cyclic, according to IEC 60068-2-30
• Ambient temperature: -25 - +70 ° C
• Overvoltage category / degree of pollution: III / 3
• Execution of the electrical connection: screw connection
• Operating frequency [switching cycles / h]: ≦ 3600
• Operating force: ≦ 5 N
• Max. Short-circuit protection device: 10 A
• Contact type: NC contact
• Switching voltage:220 V / DC
• Switching current (max.): 2 A
• Degree of protection: IP20
• Min. Temperature: -25 ° C
• Max. Temperature: +70 ° C
• Mechanical life: 5 x 106 cycles
• Electrical life: 1.2 x 106 cycles
• Mounting type: front mounting

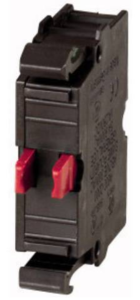

• Product type: contact element
