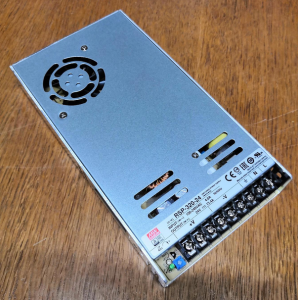

Ceiling Module | Switching Power Supply MW RSP-320-24

• closed design (case) with fan, screw terminals
• Universal input
• Overload protection by switch-off, auto recovery
• protected against short circuit, overload, overvoltage
• Built-in PFC circuit
• low installation height

Technical data

• Output voltage: 24 V DC
• Output voltage range: 20 - 26.4 V
• Output current: 13.4 A
• Power: 322 W
• Ripple: 150 mVp-p
• Input voltage: 88 - 264 VAC / 124 - 370 VDC
• Efficiency: 89%
• Inrush current, max.: 20A/115 VAC / 40A/230 VAC
• Operating temperature: -40 ... +85 °C
• Dimensions: 215 x 115 x 30 mm
• Weight: 0.9 kg
