13.05.2023 - Maker Bottle (450mm)

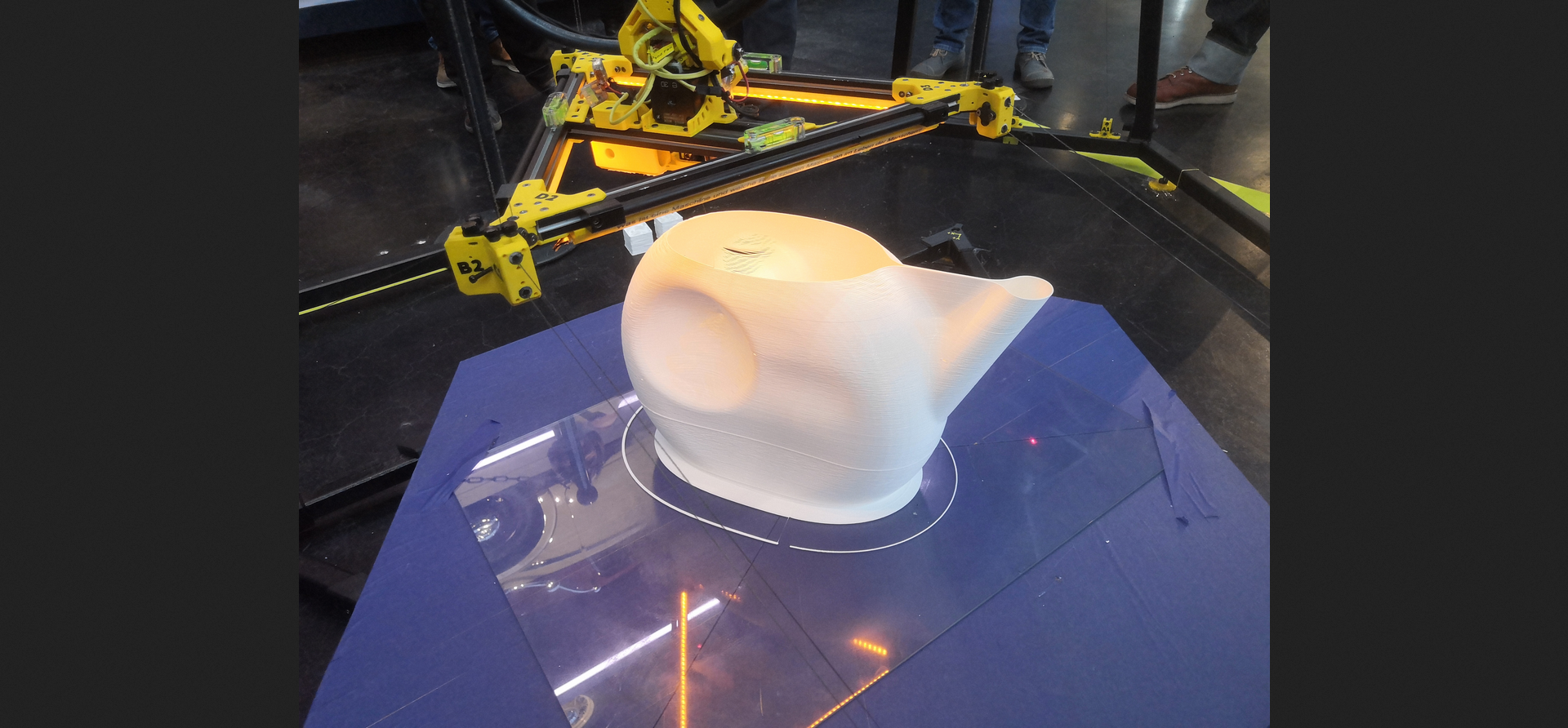

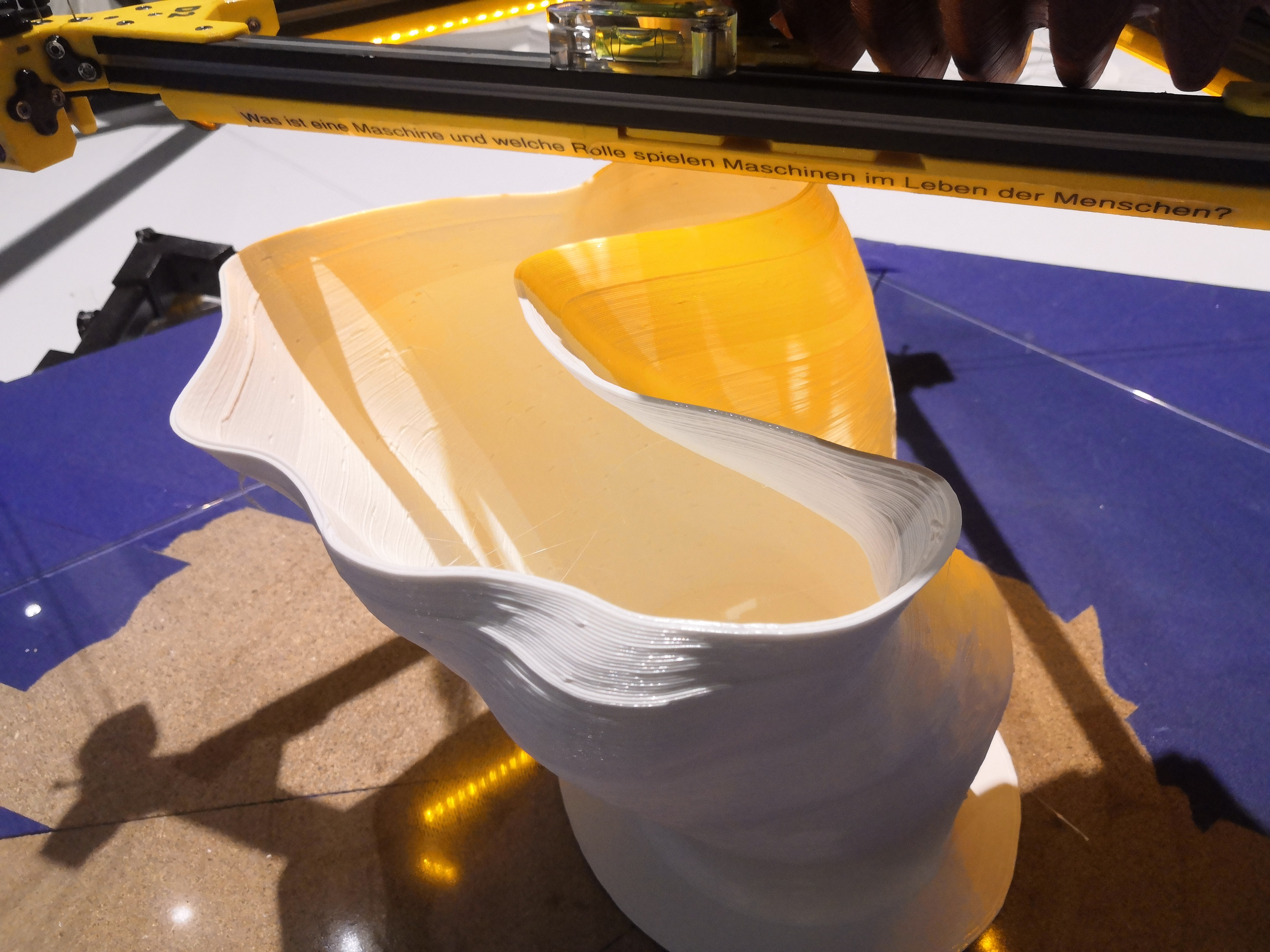

16.04.2023 - Watering can

620g white PLA filament, 1mm layer height. The can is not solid to keep the water inside. We are trying to close the surface manually. Print time 6h46min.

20.08.2022 - Torso

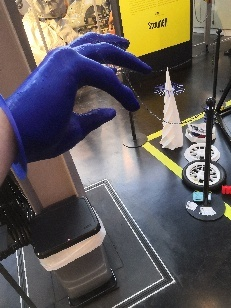

24.07.2022 - Another left hand (409 mm)

17.07.2022 - Left Hand (360mm)

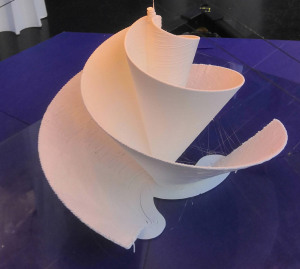

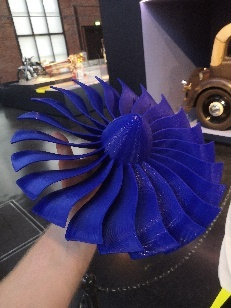

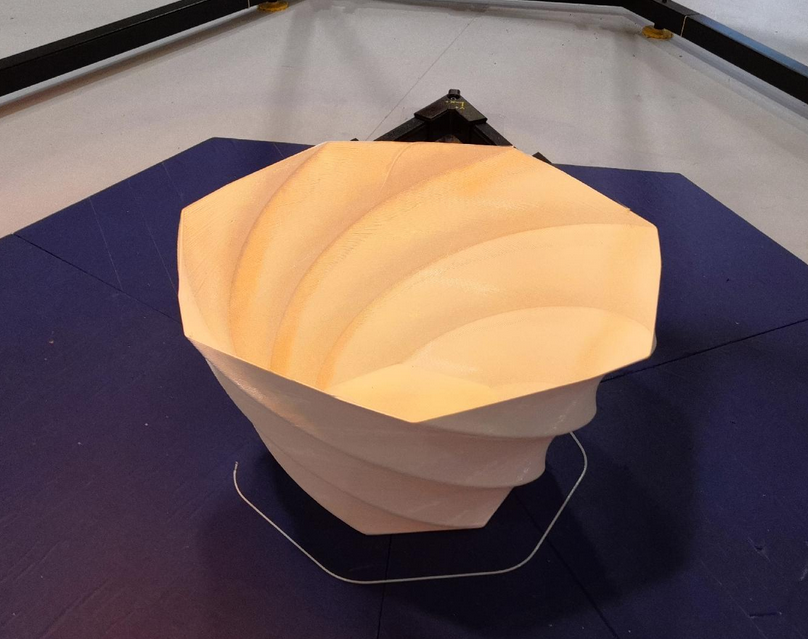

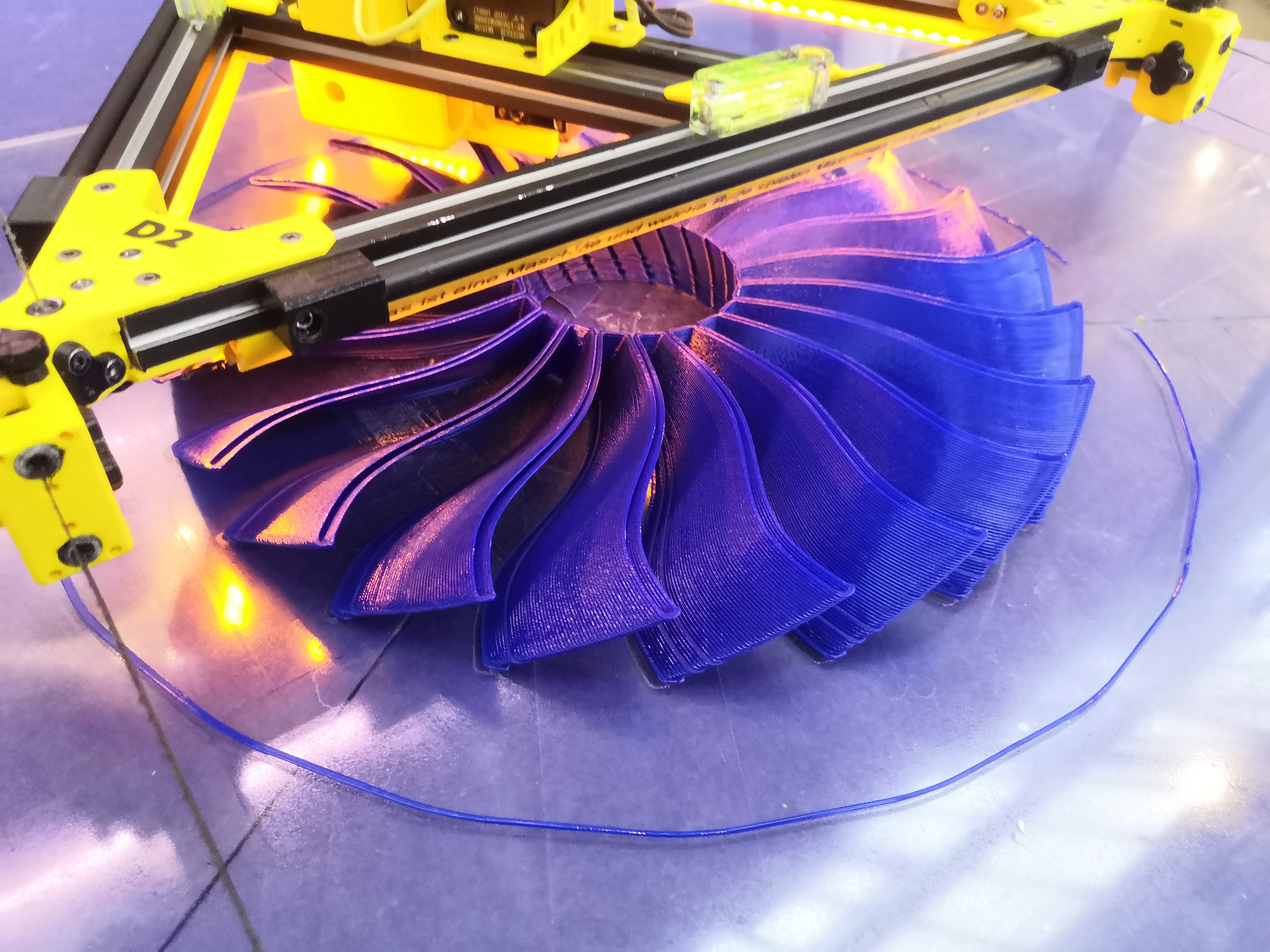

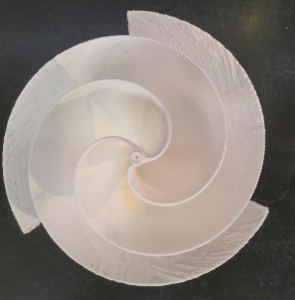

26.06.2022 - Turbine

This turbine surface is about 80mm tall, weighs around 300 g of PLA and printed in ~6 hours with a layer setting of 0.5 mm

26.06.2022 - Turbine

This turbine surface is about 80mm tall, weighs around 300 g of PLA and printed in ~6 hours with a layer setting of 0.5 mm

22.05.2022 - Carabiner

This hook is completely working! Weighs about 750 grams

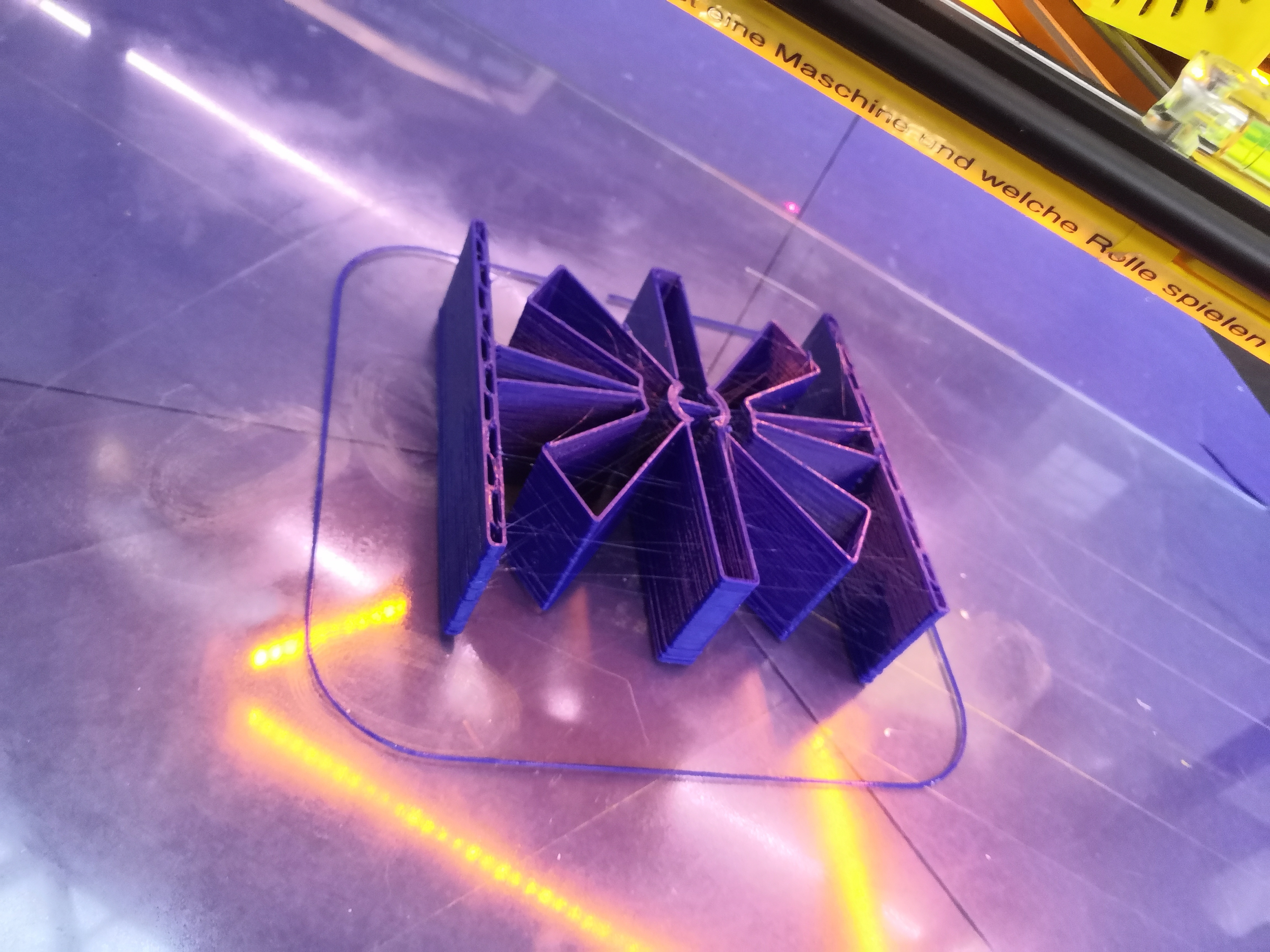

21.05.2022 - Complaint Flex Mechanism

This part is bendable about 180° degrees

Flex-16: Large-Displacement Monolithic Compliant Rotational Hinge by BYU_CMR - Thingiverse

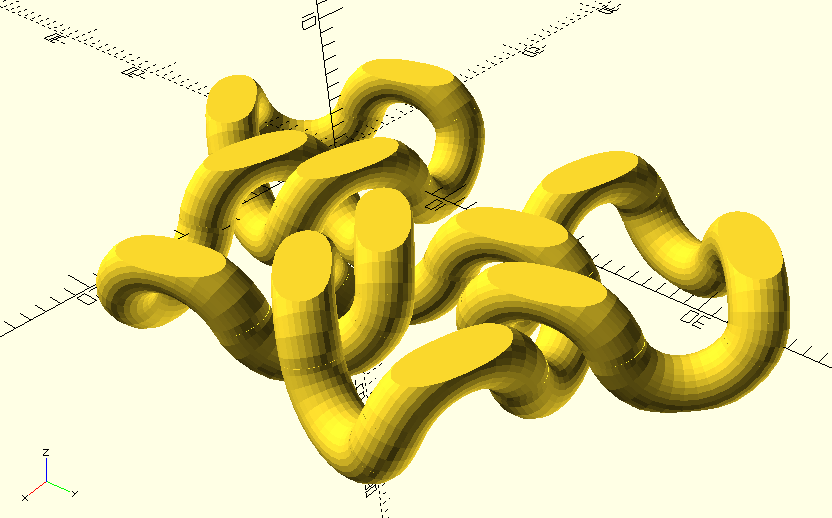

24.04.2022 - Interlocking Chain Segments

Chain mail tri-mesh improved by dfyler - Thingiverse

27.03.2022 - Turbine

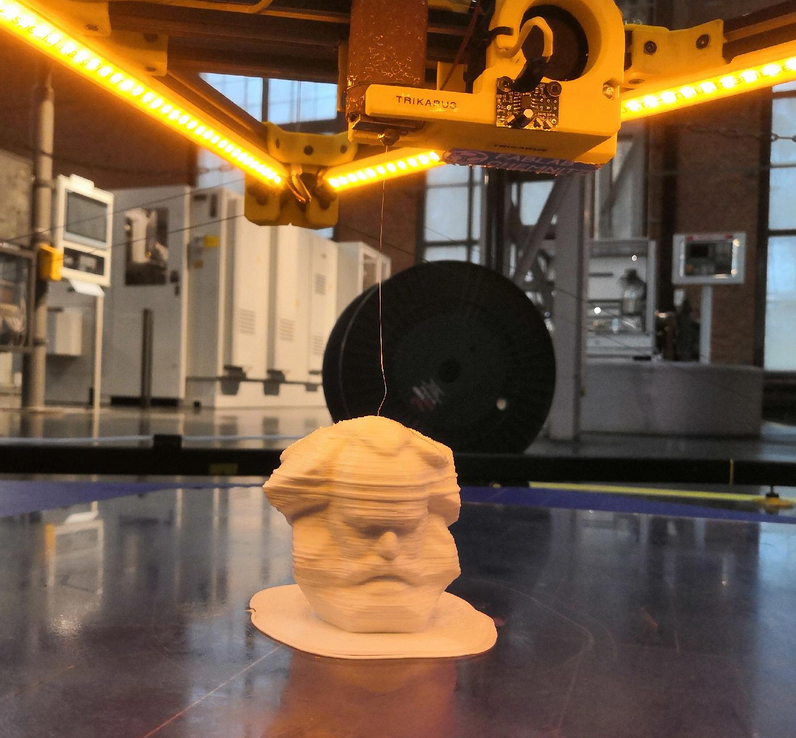

04.03.2022 - Karl Marx (the little one)

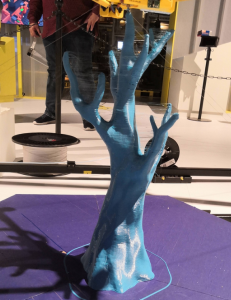

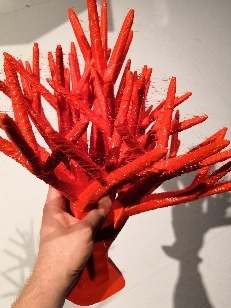

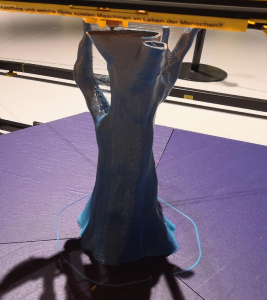

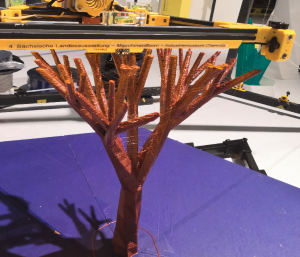

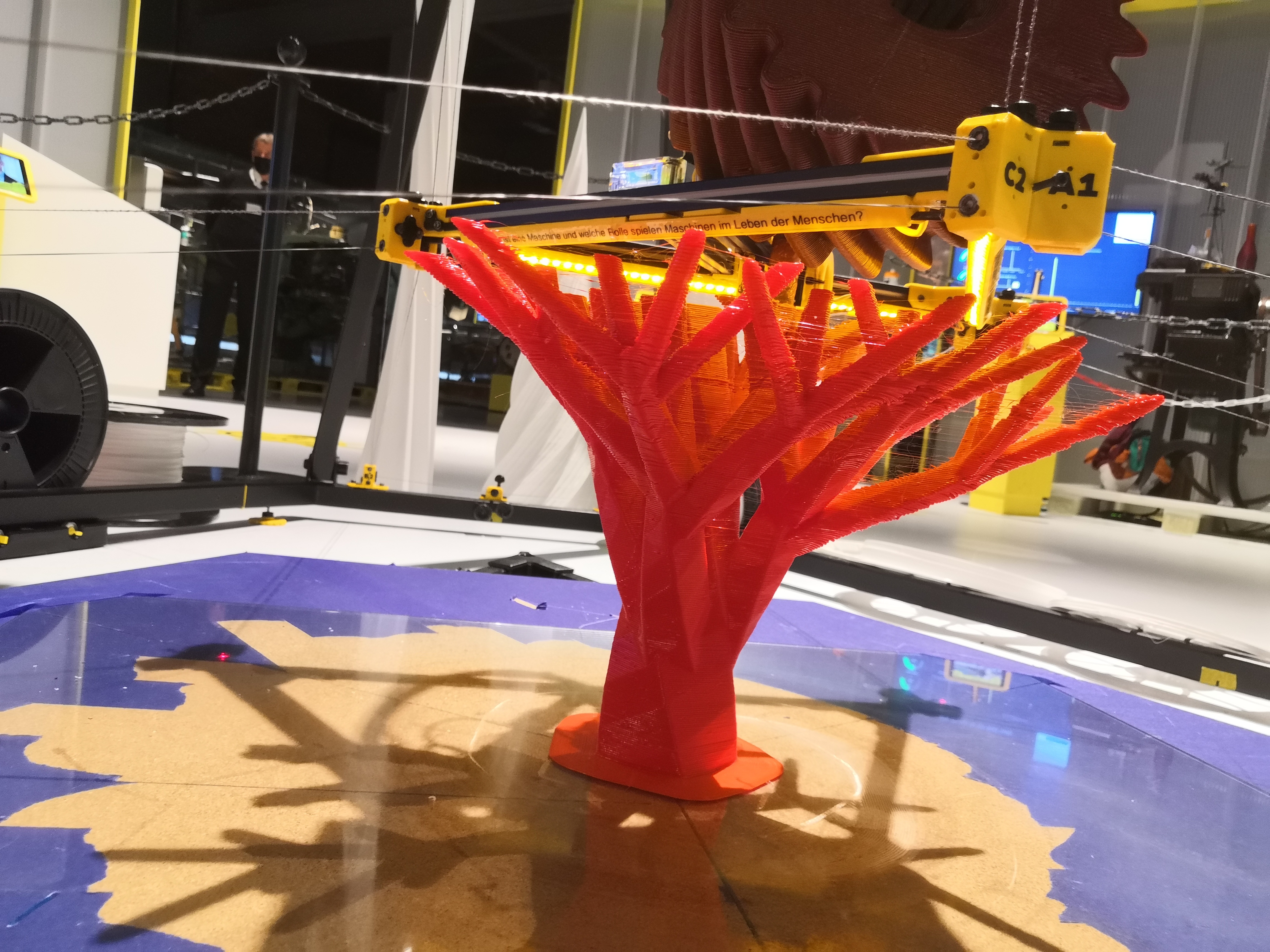

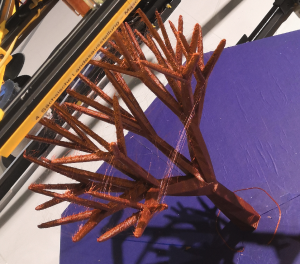

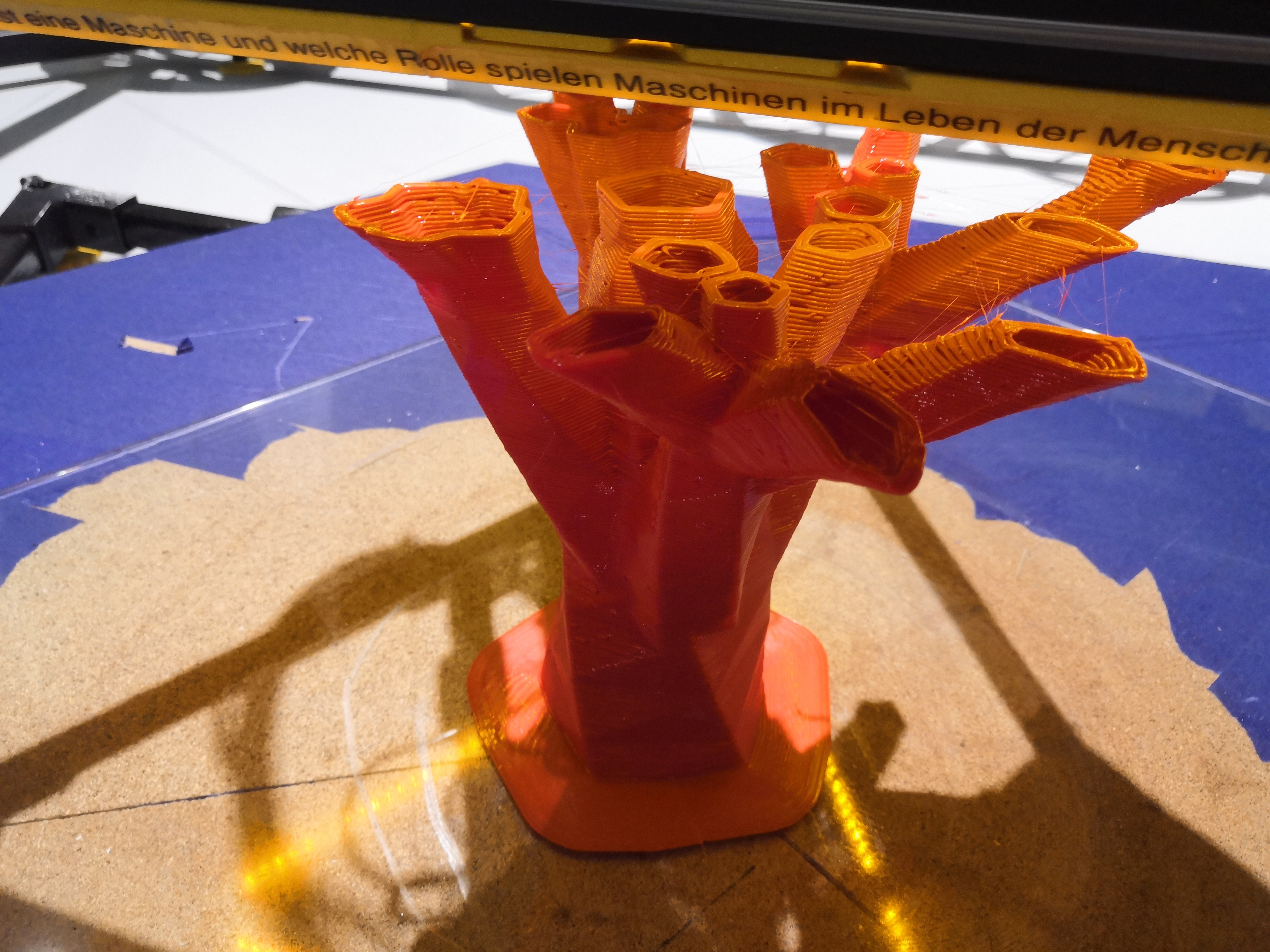

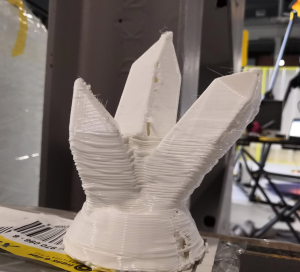

27.10.2021 + 29.10.2021 + 31.10.2021 - Tree #2 (???mm)

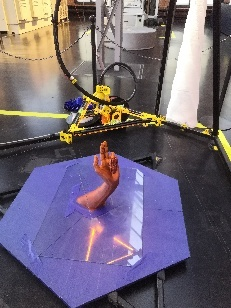

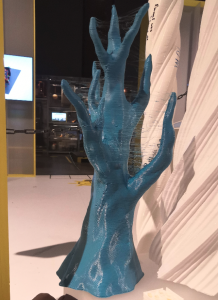

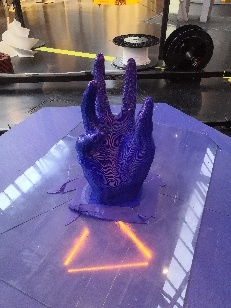

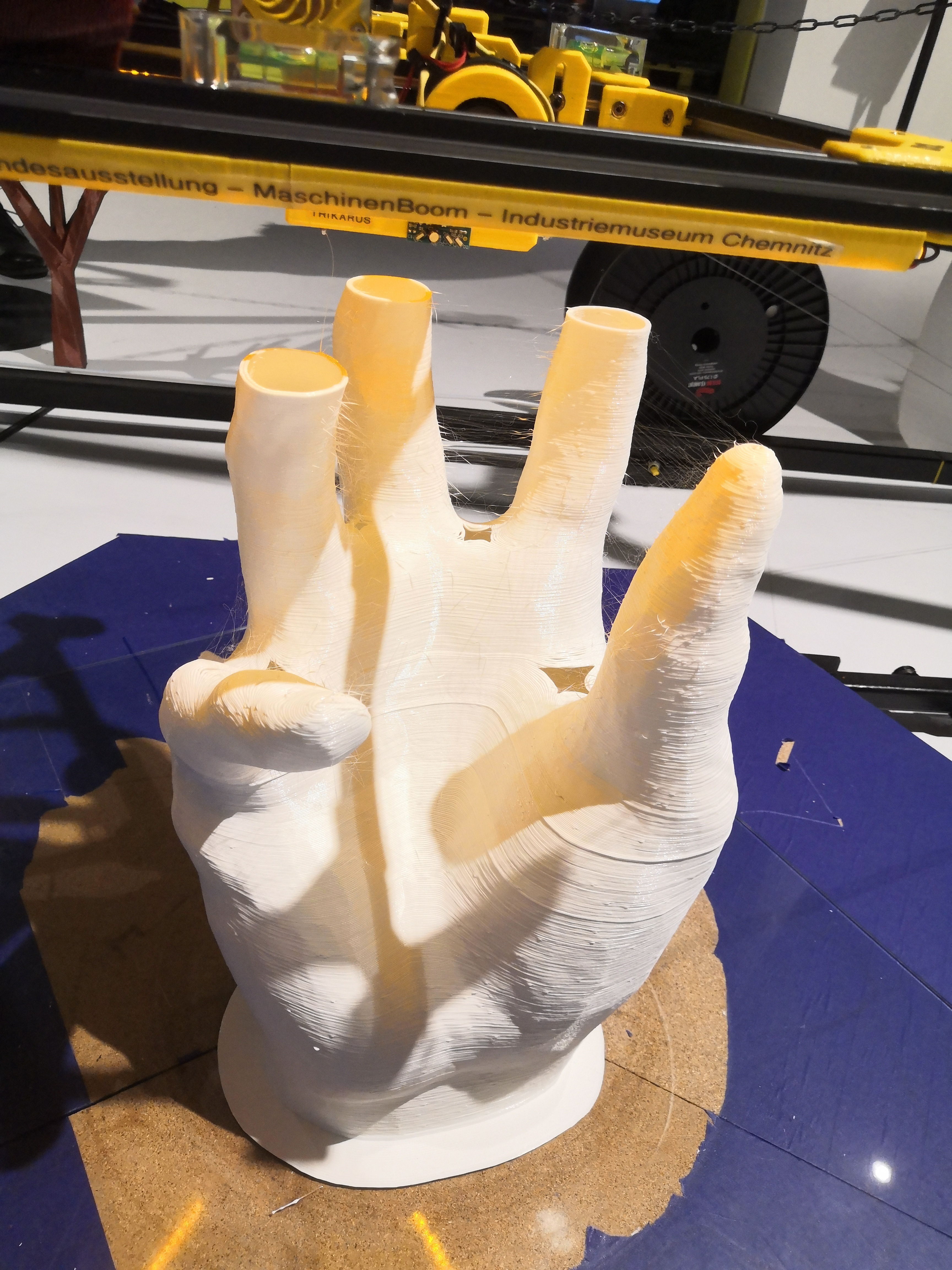

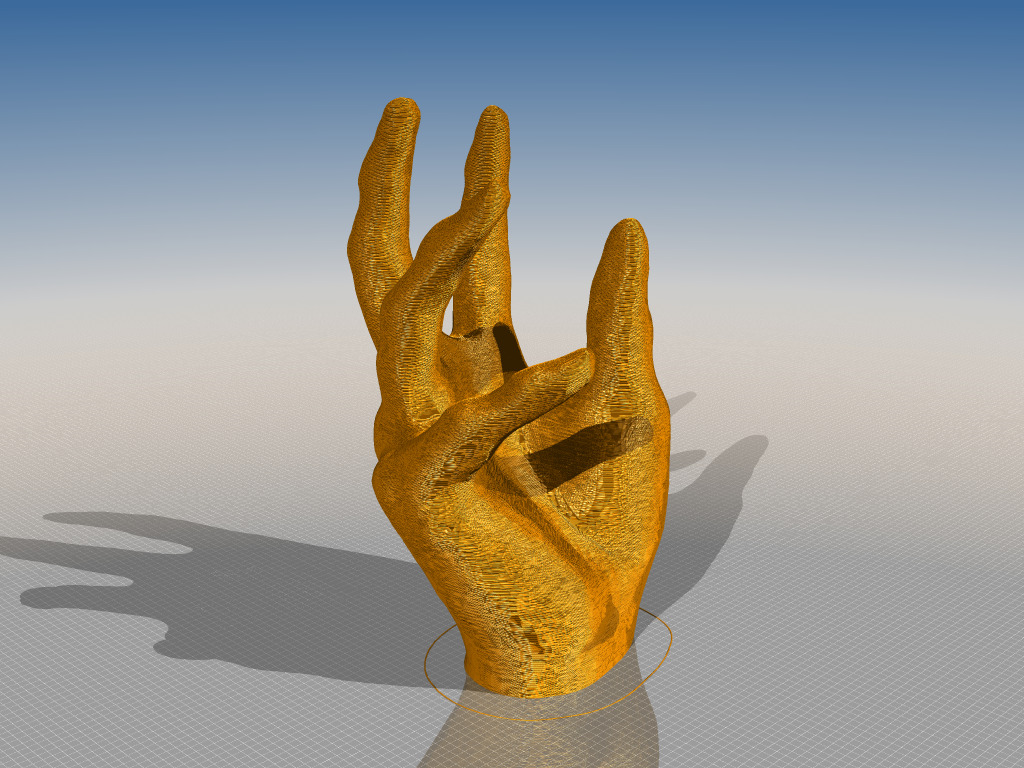

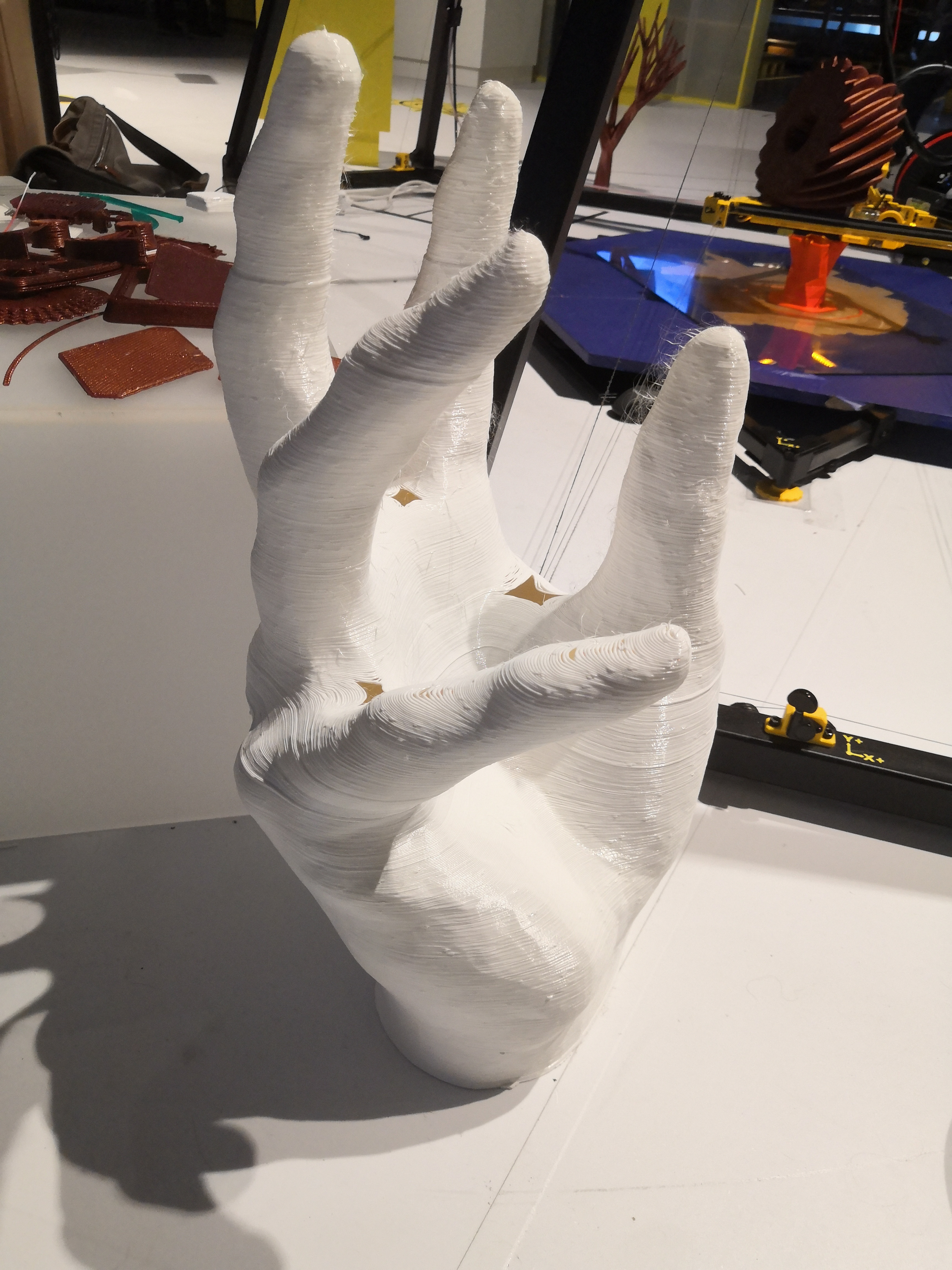

22.10.2021 + 24.10.2021 + 27.10.2021 - Hand (???mm)

This print has some cosmetic issues in terms of missing top surface layers (has some holes in it). Reason: wrong slicing. The printed model also has some z shiftings. It was printed over 3 days which longer pauses between. It seems that the D motor sagged down a little bit.

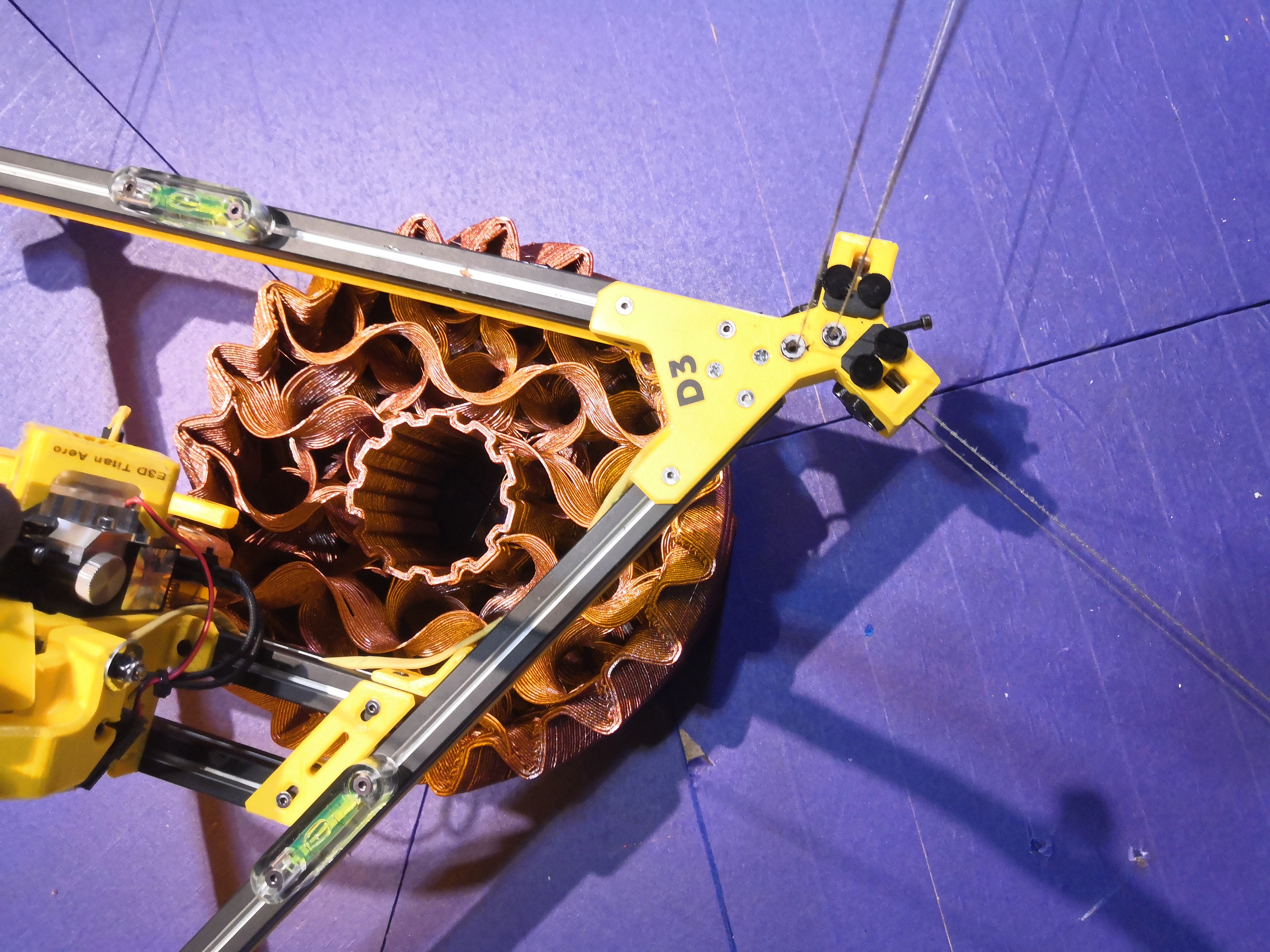

07.2021 - 09.2021 - The wheel series

See

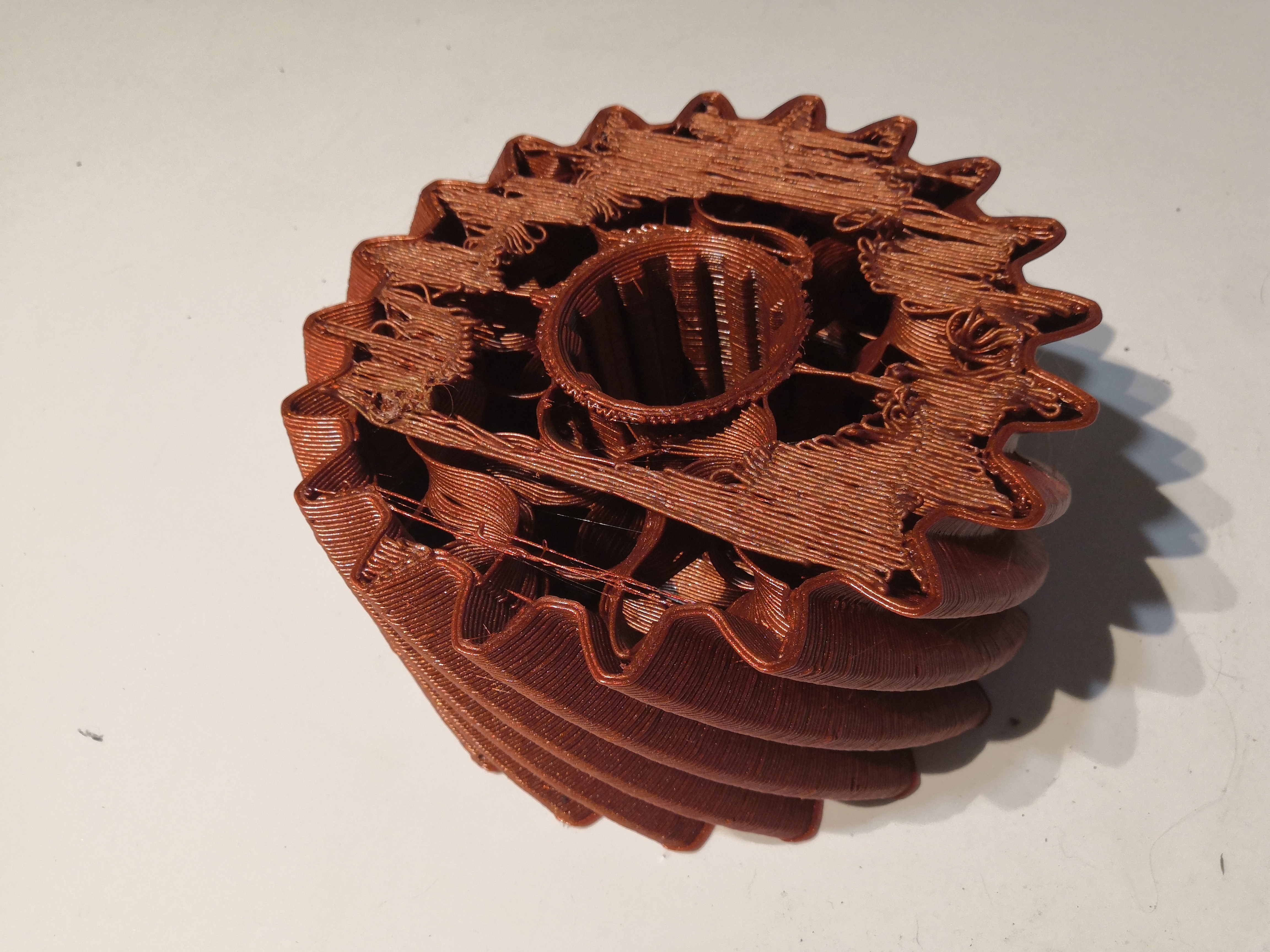

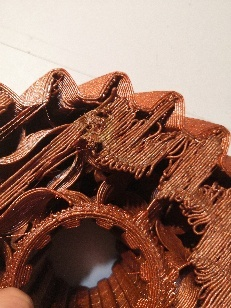

01.02.2021 Gear - (155 mm) - failed at Z ~ 115 mm (91% of progress)

Print time: 7h25m

This print failed because bridging failed. Filament layer curled up which produced collision. Good example to see how forces apply while effector is moving around and messing with obstacles. This way the printer really should not run unattended.

22.10.2021 + 24.10.2021 + 27.10.2021 - Hand (???mm)

This print has some cosmetic issues in terms of missing top surface layers (has some holes in it). Reason: wrong slicing. The printed model also has some z shiftings. It was printed over 3 days which longer pauses between. It seems that the D motor sagged down a little bit.
