Sheriff Star
Source of documentation: https://github.com/garykac/pathmonkey
Sheriff stars typically have 5 or 6 points and also have a circle at the end of each point so that the badge can't accidentally stab the officer while they're wearing the badge.
6-pointed Sheriff Stars

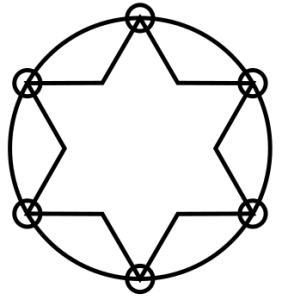

| Shapes created by extension | Remove original circle | Union the shapes |
|
|
|
|

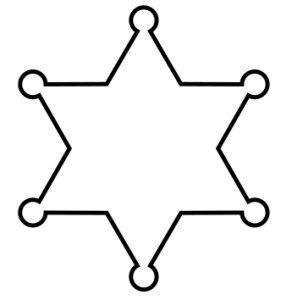

The components (star, circles) are kept separate so that additional processing can be performed on each component if desired. To produce a sheriff star outline, just union the various shapes together.

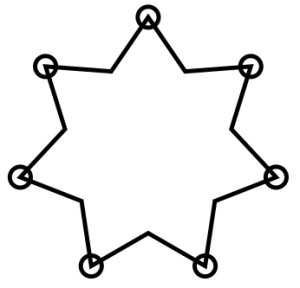

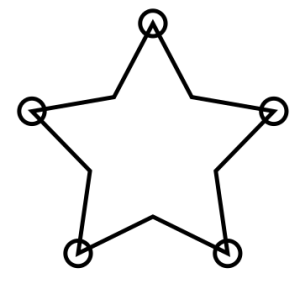

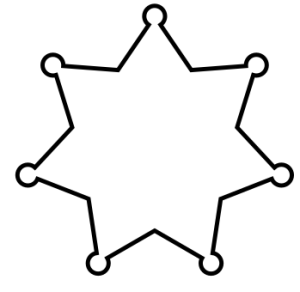

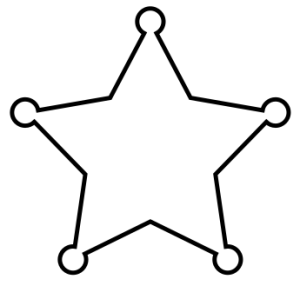

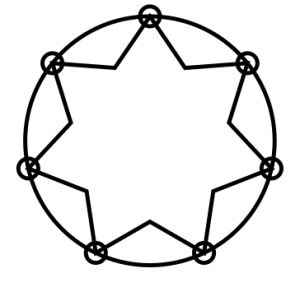

5- and 7-pointed Sheriff Stars
|
|
|
|
|
|
|
|

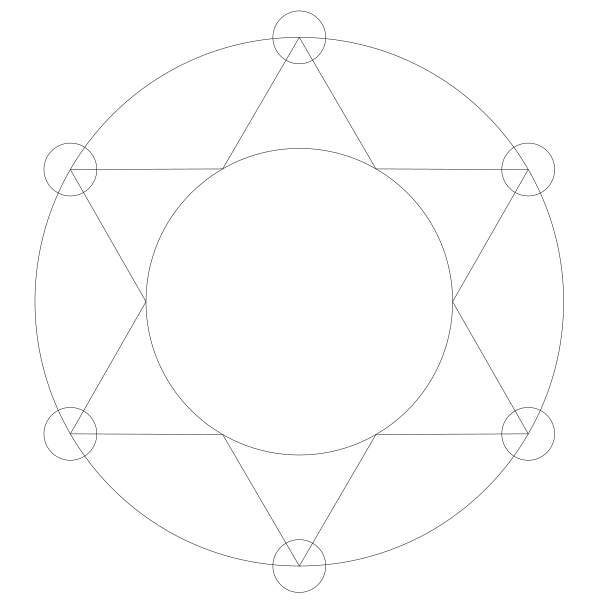

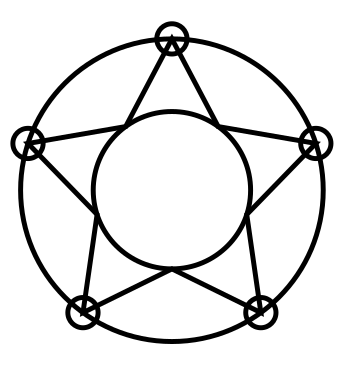

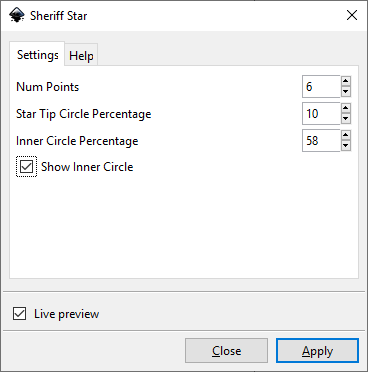

If the "Show inner circle" option is selected, then a circle touching the inner points of the star will be included in the output. Here is an example for a 5-pointed star:

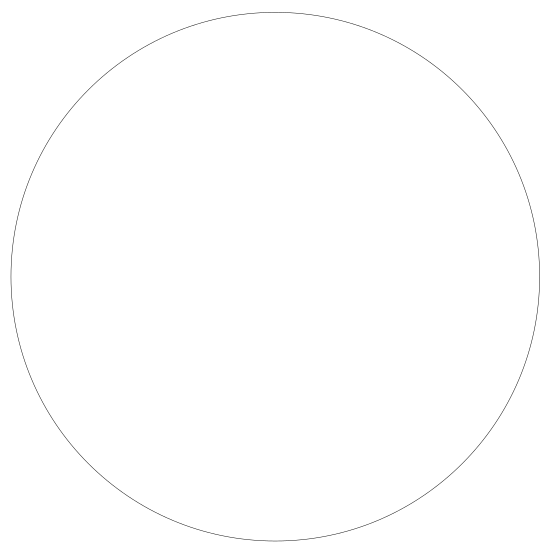

This extension works with circles and ellipsis objects
