Epilog Dashboard BBox Adjust

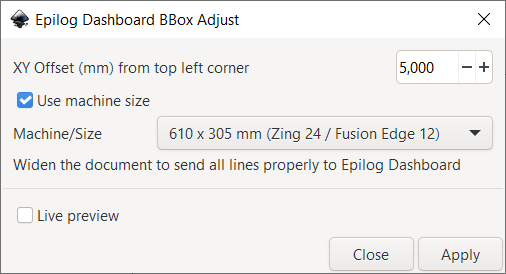

This tool is a helper to adjust the document border including an offset value, which is added. Sending vector data to Epilog Dashboard often results in trimmed paths. This leads to wrong geometry where the laser misses to cut them. So we add a default (small) amount of  to expand the document's canvas.


The issue in pictures

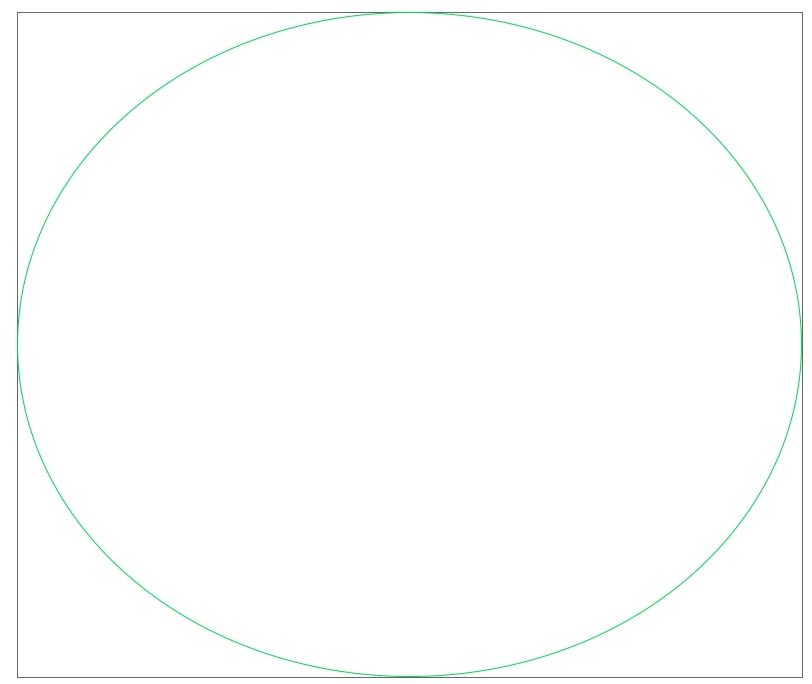

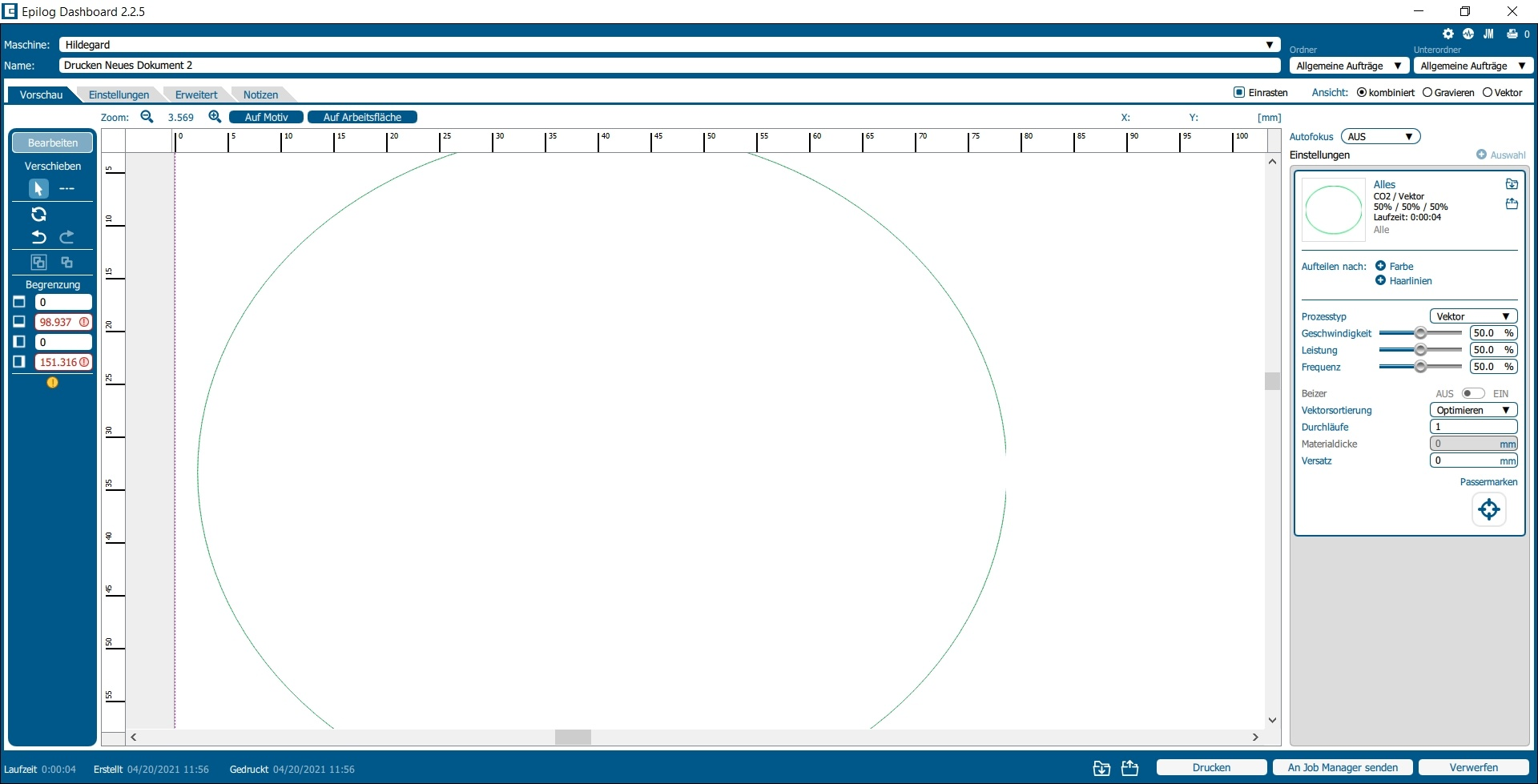

Correct fit in Inkscape Import in Epilog Dashboard (ellipse lost parts of its contour)
grafik.png grafik.png
